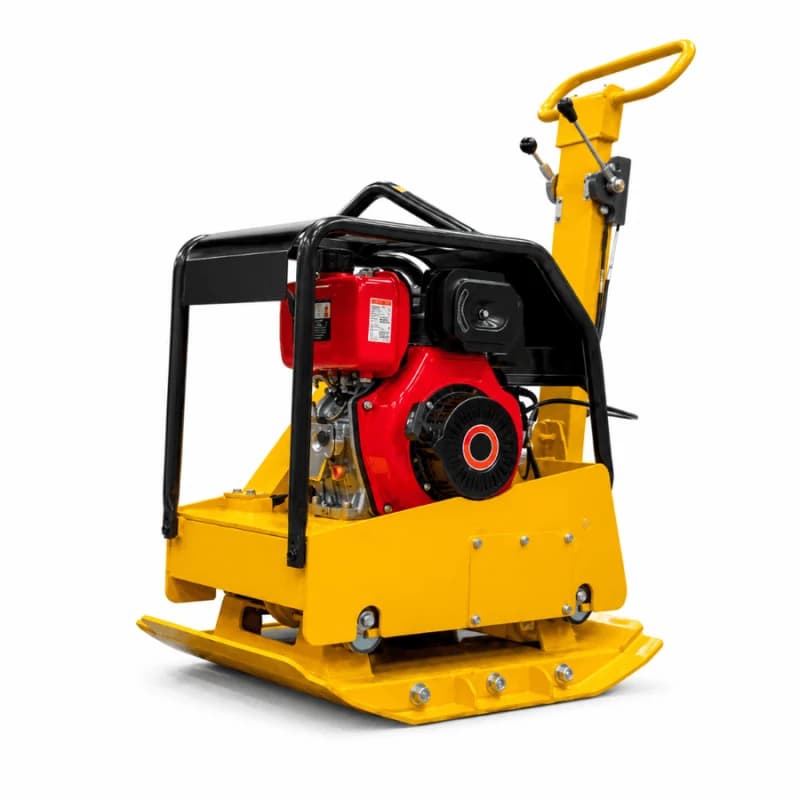

NRG NRG 270KG Diesel Reversible Plate Compactor 6HP

The NRG 270KG Reversible Diesel Plate Compactor FPC330 is a heavy-duty compaction machine engineered for large-scale construction, roadworks, bridge projects, foundation preparation, and infrastructure development. Powered by a reliable 178F air-cooled diesel engine, it delivers exceptional compaction performance for granular soils, crushed stone, gravel, sand, and mixed materials.

Key Features:

• Heavy-duty 178F diesel engine

• 270kg operating weight

• 38kN centrifugal compaction force

• Forward and reverse travel

• Up to 900mm compaction depth

• Heavy-duty steel base plate

• Mechanical directional control

• Reinforced protective frame

• Central lifting hook

• Built for professional contractor use

Specifications

• Model: FPC330

• Product Type: Reversible Diesel Plate Compactor

• Engine Model: 178F Diesel

• Engine Type: Air-Cooled, Single-Cylinder, 4-Stroke Diesel

• Engine Power: 6.0HP (Approx. 4.4kW)

• Fuel Type: Diesel

• Centrifugal Force: 38kN

• Maximum Compaction Depth: Up to 900mm

• Operating Weight: 270kg

• Plate Size: 820 × 480mm

• Travel Speed: 20m/min

• Compaction Frequency: 3,750–4,800 VPM

• Productivity: Up to 650–800m²/hour

• Direction: Forward & Reverse

With an operating weight of 270kg, 38kN centrifugal force, up to 900mm compaction depth, and a mechanical forward and reverse drive system, this machine is built for demanding applications where deep compaction and high productivity are essential.
