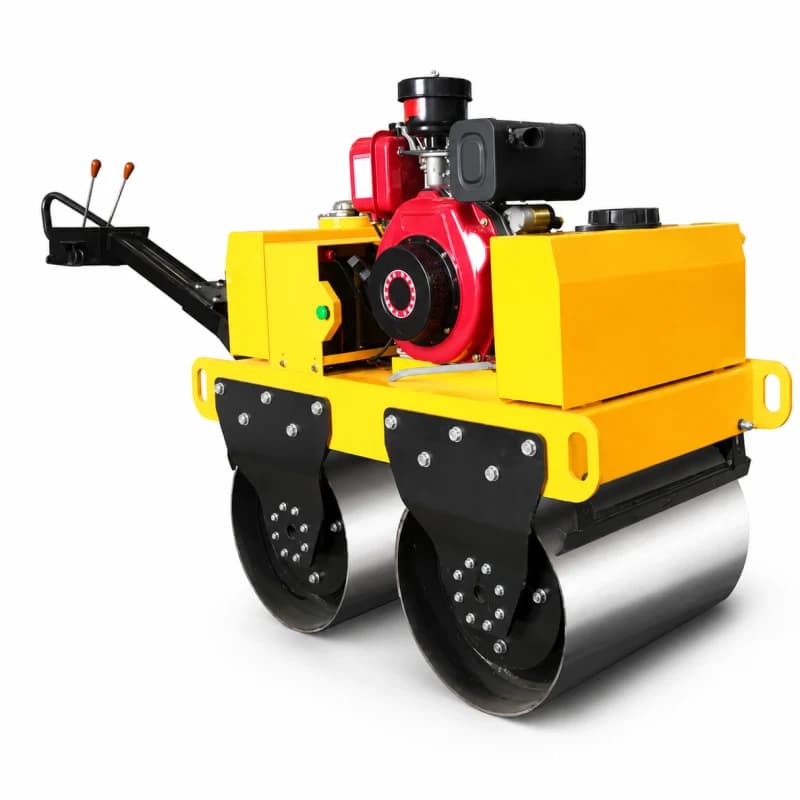

NRG NRG 600kg Double-Drum Walk-Behind Vibratory Roller with 10HP Diesel Engine

The NRG AL-60 is a 600kg double-drum walk-behind vibratory roller powered by a 10HP CF186 single-cylinder air-cooled diesel engine with electric key start and manual recoil backup. It delivers a centrifugal force of 20kN at a vibration frequency of 70Hz across a 600mm compaction width with double smooth steel drums sized at 426 × 600mm, making it well suited to compacting asphalt, repairing road sections and finishing pavements and walkways. Travel speed is adjustable from 0–3.8km/h in both forward and reverse.

Key Features:

• 600kg operating weight for effective compaction of asphalt and granular surfaces

• Powerful 10HP CF186 air-cooled diesel engine for reliable site performance

• Electric key start with manual hand recoil backup

• 20kN centrifugal force for thorough compaction

• High 70Hz vibration frequency for efficient material densification

• Adjustable travel speed from 0 to 3.8km/h in forward and reverse

• Double smooth steel drums for uniform surface finish

Specifications:

• Operating Weight: 600kg

• Engine Model: CF186

• Engine Type: Single-Cylinder Air-Cooled Diesel

• Engine Output: 10HP

• Starting System: Electric Key Start with Manual Recoil Backup

• Fuel Type: Diesel

• Fuel-Tank Capacity: 6 Litres

• Travel Speed: 0–3.8km/h

• Vibration Frequency: 70Hz

• Centrifugal Force: 20kN

• Drum Configuration: Double Smooth Steel Drums

• Drum Size: 426 × 600mm

• Compaction Width: 600mm

• Hydraulic Oil Capacity: 18L

• Water Tank Capacity: 20L

• Travel Direction: Forward and Reverse
